FRL Unit 1/4'' NPT BFC2000 Air Filter Regulator With Lubricator
Our Pneumatic Filter, Regulator, Lubricator Set for air preparation systems is a modular assembly designed to remove moisture and particle ingress, regulate the incoming air pressure and allow lubricant to be carried in the air, offering a complete air preparation treatment set.
Assembled in sequence in a modular design the filter is used to eliminate dust, solid particles, water vapour particles, oil vapours, etc from the compressed air, the pressure regulator enables the regulation, reduction and stabilisation of air pressure in the pneumatic circuit and the lubricator offers additional lubrication to a compressed air line where components require this need.
Specification of AFC, BFC series Filter Regulator Lubricator:
| Model | AFC1500 | AFC2000 | BFC2000 | BFC3000 | BFC4000 |
| Fluid | Air |
| Port Size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' |
| Filtering Grade | 40μm or 5μm |
| Pressure Range | Semi-auto and automatic drain: 0.15 to 0.9 MPa (20 to 130 psi) Manual drain: 0.5 to 0.9 MPa (7 to 130 psi) |
| Max Pressure | 1.0 MPa (145 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Temperature Range | -5 to 70℃ (unfreeze) |
| Capacity of drain bowl | 15CC | 60CC |
| Capacity of oil bowl | 25CC | 90CC |
| Recommand lubricant | ISO VG 32 or equivalent |
| Constitute | Filter-Regulator | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 |
Ordering Code of AFC, BFC series Filter Regulator Lubricator:
Inner Structure of AFC, BFC series Filter Regulator Lubricator:

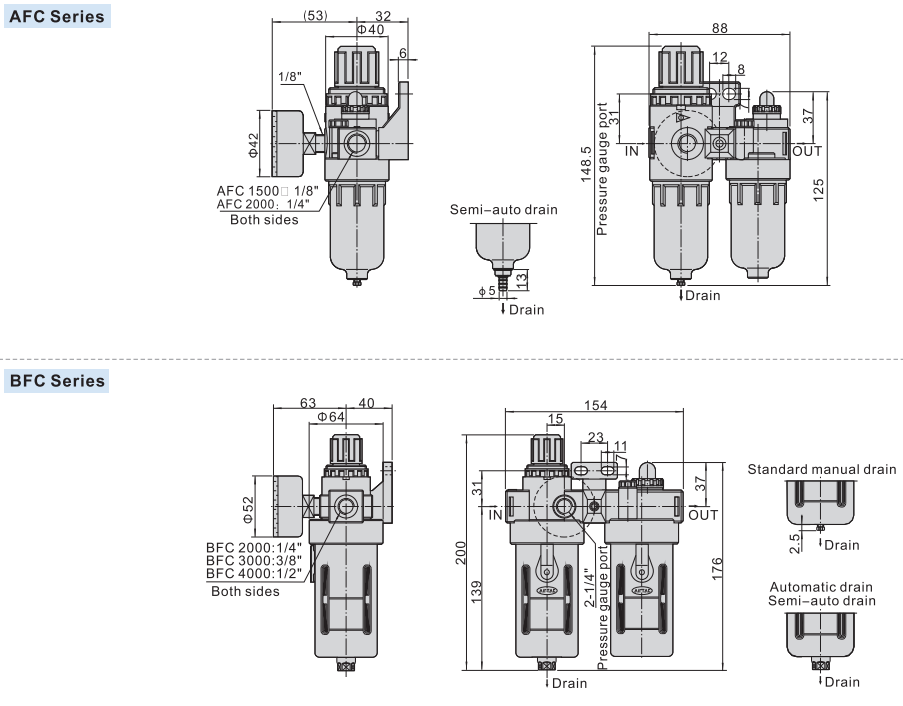

Dimension of AFC, BFC series Filter Regulator Lubricator:
