2 Way Normally Opened Water Solenoid Valve Stem Armature Assembly

2 Way Normally Opened Water Solenoid Valve Stem Armature Assembly

Description:

When the working current passing through the coil, a magnetic field is generated around the coil. The electromagnetic force drives the moving iron core to overcome the resistance of the spring to move upward, and it is absorbed with the static iron core.

When the coil is powered off, the electromagnetic force disappears, and the moving iron core is reset downward under the action of the spring force.

During the choose of the Solenoid Armature, you should pay attention to below factors:

1. Working voltage: AC or DC

2. Switching function: 2/2 or 3/2way;

3. De-energized state: Normal close, normal open or Divert

4. Stroke of the matched valve body

5. Valve’s orifice

6. Working environment: working medium, temperature, pressure of pipeline etc

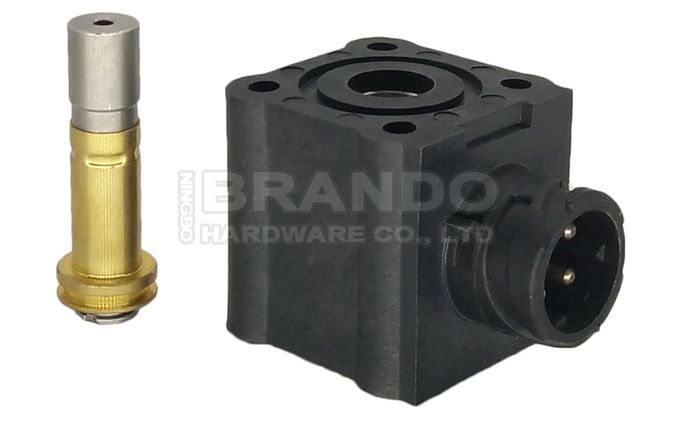

Detailed Images of solenoid valve stem:

Dimension & Data of solenoid valve stem:

Dimension	Model	BAPO216052520
	Function	2/2 Way, Normally Open
	Seat Connection	M25x1 Thread
	Core Tube Material	Stainless Steel 304
	Seal Material	NBR
	Voltage	All range of AC and DC available
	Customize Service	Provided, Pls show us sample or drawing

Brando Solenoid Valve Stem Production Video:

Solenoid Valve Stem Categories:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 30mm.

*According to tube material: Brass, Stainless Steel

*According to valve application: Our armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration, dust collector and other automation control industries.

Features of Armature Assembly:

The main characteristics of the armature of solenoid valve can be reflected in the following aspects.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Normally Opened Armature Assembly

Water Solenoid Valve Armature Assembly

NO Water valve Kit

2 Way Normally Opened Water Solenoid Valve Stem Armature Assembly Images
